Efficient acquisition of tribunes in the highest resolution
Highlights
- Resolution 66 MP
- Field of View 13° - 61°
- Deep AI Classification
- EdgeAnalytics AI Apps
- Mountera® Housing

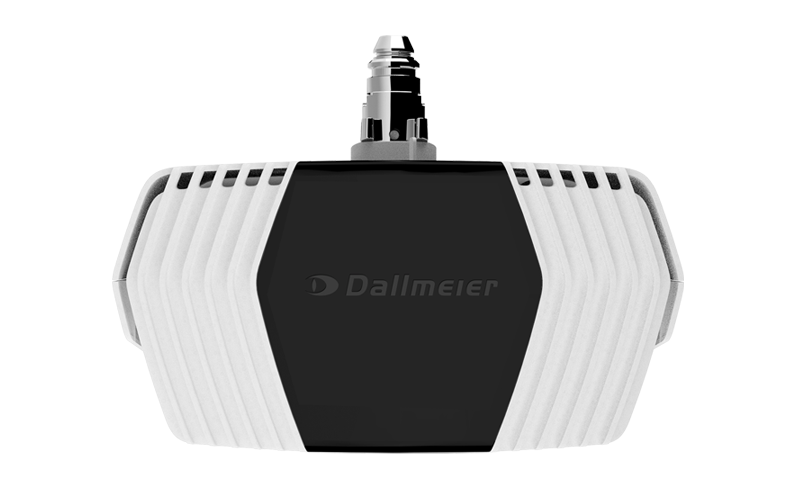

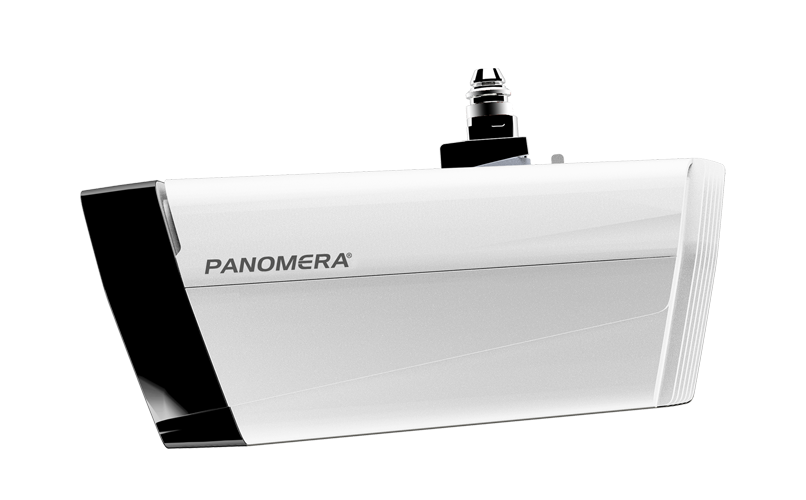

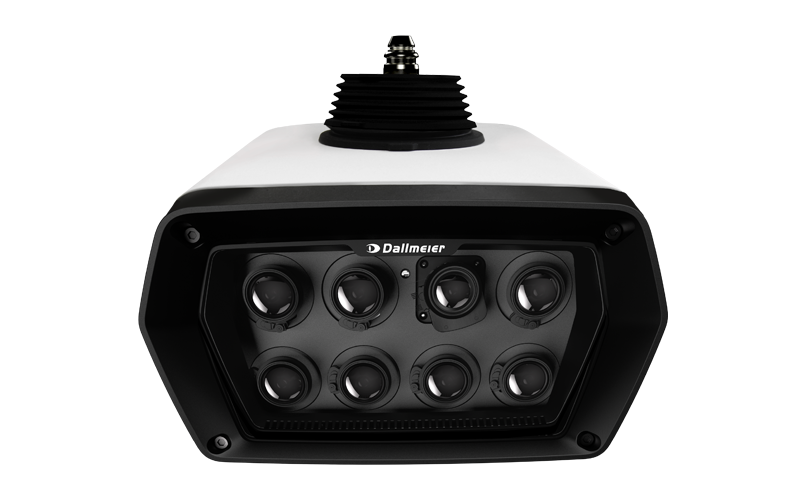

The various models of the Panomera® Ultraline Stadium series are designed for high-resolution capture of enormous areas that start at a large distance and are spatially rather wide and short. The innovative lens-sensor system of the Panomera® allows the acquisition of the entire capture area with a consistently high pixel density and depth of field.
This makes the models of the Panomera® Ultraline Stadium series ideal for video protection of tribunes or airfields, for example.
“With Panomera®, we can detect incidents very quickly and transmit the video evidence to the police within just a few seconds. The new cameras have already delivered outstanding results during several matches and we are very satisfied with the cooperation with Dallmeier.”
Francesco Gianello, Head of Facilities Management, Allianz Stadium (Juventus Turin)
Overview
Resolution and frame rate
The sophisticated combination of the high-resolution sensors offers an excellent dynamic range of 130 dB UWDR effectively and modeldependent a pixel density of over 125 px/m up to a distance of 325 m. When focusing on more distant areas, a pixel density above 62 px/m can also be realised up to a distance of 656 m. The Panomera® always provides images with a resolution of 66 MP in real time, forensically optimised for each sensor and without distortion in the peripheral areas.
Domera®OS
The sensors of the Panomera® are equipped with the hardened Linux operating system Domera® OS (D-OS). In addition to a kernel with long-term support, it offers extensive security functions such as the deactivation of unused ports or the enforcement of strict passwords. In addition, Domera® OS supports secure network authentication (IEEE 802.1X) and encrypted data transmission (TLS 1.3/AES-256). All software components are subject to permanent monitoring, maintenance and updating, while the effectiveness of all measures is ensured by regular external penetration tests.
AI Analysis – Deep AI Object Classification
The Panomera® is equipped with an intensively trained neural network that analyzes the captured images in high resolution and independent of movements in the background (green spaces, water areas, etc.) and reliably classifies defined objects (persons, vehicles, etc.) in real time. The captured data is sent with the video stream to the Dallmeier recording system for evaluation and storage and is available for further processing with the integrated EdgeAnalytics Apps.
AI Analysis – EdgeAnalytics Apps
The embedded EdgeAnalytics AI apps use the raw data of the Deep AI Object Classification to assess the captured operations according to the specific criteria of various use cases. The Line Crossing App, for example, detects the crossing of a defined line by a relevant object (person, vehicle, etc.) and generates a corresponding message with time and direction of movement. The generated event messages and values complete the raw data already contained in the video stream and can be displayed and evaluated with a Dallmeier client software.
AI Analysis – Configuration
The embedded EdgeAnalytics AI apps are configured directly on the individual modules, with the analysis results being merged on the master module for transmission to the recording system. The master configuration will be integrated with one of the next updates of Domera® OS. This convenience feature allows cross-module configuration of the analyses on the master module and provides continuous object tracking across module boundaries.
Permanent capturing
The multifocal sensor system captures and stores all areas of the object space in maximum detail resolution. It does not matter whether the operators in live mode concentrate on a certain area (multiple detail zoom) or whether interesting areas are displayed in detail on the basis of video content analysis (multiple auto tracking). The Panomera® recordings always contain the entire action and allow for the evaluation of each incident.
Further Features
- Functions for data protection and data security (GDPR-compliant)
- Compatible with ONVIF Profile M, Profile S and Profile T
- Weather-proof (IP69) housing with integrated heater
- Housing coating tested for seawater resistance
- Fully compatible with the Mountera® Quick-Lock System
- Network protocol MQTT supported
AI Licenses
AI Licenses
| Optional EdgeAnalytics AI Essential Apps | |
|---|---|
 | The AI Motion Detection App analyzes the entire image content and reliably detects all movements triggered by persons or vehicles. The motion events are sent to the recording system with the video stream. Afterwards, they are available with metadata such as object type, time and position for targeted evaluation with Dallmeier client software. |
 | The AI Tamper Detection App is classically used for detecting and reporting attempted tampering with the camera. The app detects a general change in the captured scene, such as typically occurs when the camera is manually rotated or tilted, and immediately issues a corresponding message. |
 | The AI Loitering Detection App analyzes the movement of persons detected by the neural networks and evaluates their dwell time in a defined sensitive zone. If the set limit value of the dwell time is exceeded, a corresponding message can be displayed to the operator. At the same time, undesired attendants can be requested to leave the area by outputting a stored audio sequence. |
 | The AI Intrusion Detection App allows the definition of protected zones and issues a message as soon as an object intrudes into them. The object type relevant for the message can be defined as, for example, person or vehicle. For targeted operator attention, a pre-zone can be defined for each protected zone, which can be used to escalate the messages. |
 | The AI Line Crossing App issues a message as soon as a person or vehicle crosses a virtual line drawn in the image. Uninteresting crossings of the virtual lines, for example by animals, can be effectively excluded. An operator is thus less distracted and can concentrate much better on relevant observations. |
 | The AI Vehicle Parking App enables the definition of several zones in which vehicles may not be parked for a longer period of time. The permitted parking time can be set globally for all zones between 5 and 3600 seconds. If this time is exceeded, a corresponding message is sent to the client indicating that the vehicle has been parked incorrectly. |
| Optional EdgeAnalytics AI Apps | |
|---|---|
 | The optional AI High Resolution Counting App and the underlying AI High Resolution Counting neural network were developed for the direct counting of people and vehicles in large crowds (up to 500 people or vehicles). Typical use cases include counting people in airport waiting areas or counting vehicles in large parking lots. |
 | The optional AI Perimeter App allows the definition of particularly protected areas (sterile zone) and issues an alarm message as soon as an object intrudes them. In conjunction with the neural network specially trained for perimeter protection, even attacks by well-prepared groups of perpetrators who use unusual forms of movement or camouflage clothing can be reliably alerted. The included AI Extended Tamper Detection App is used for detecting and reporting attempted tampering with the camera. |
Accessories
Accessories
 | Mountera® Box with PSU Mountera® Box with power supply unit, 48 V DC, 5.4 A, 260 W, IP69, white |
 | Mountera® Box with SRS Edge Mountera® Box with SMAVIA Appliance for recording up to 16 video streams, license for the recording of a Dallmeier network camera or a Panomera® system included, licenses for access from 2 clients included, power supply unit 48 V DC, 5.4 A, 260 W included, IP69, white, without SSD memory module |
 | Mountera® Wall Bracket Mountera® bracket for the installation of camera systems on walls or on a Mountera® Box, Quick-Lock System included, robust aluminium construction, internal cable routing, vandal-resistant, powder-coated, white |
 | Mountera® Ceiling Bracket Mountera® bracket for installation of camera systems on ceilings, Quick-Lock System included, robust aluminium construction, internal cable routing, vandal-resistant, powder-coated, white |
 | Panomera® Sunshield Sunshield for Panomera® S 4 and S8 models with Mountera® housing, aluminium, white with black front panel |
